TYPE 10REMOTE FLUSH BUTTONS FOR SIGMA AND OMEGA SERIES IN-WALL TOILET SYSTEMS
CONVENIENCE AND ACCESSIBILITY
![Geberit remote flush button Geberit remote flush button](/_assets/local-media/bathroom-images/2023-icon-bathroom-type10-ir-button-chrome-big-size-570-322.jpg)
Geberit remote flush buttons let you position the flush actuator to meet personal preference or accessibility requirements. All Type 10 buttons feature dual-flush capability and are available with special options for mounting to drywall or bathroom furniture. When installing a remote flush button, cover plates are available to hide the standard flush opening and provide access to the fill and flush valves for any required maintenance.
TYPE 10 REMOTE BUTTON WITH PNEUMATIC MANUAL OPERATION
![Type 10 remote flush button with hand Type 10 remote flush button with hand](/_assets/local-media/remotes/type-10-remote-hand-16-9.jpg)
The design of our Type 10 pneumatic remote button is particularly striking, with a smooth surface combined with timeless finishes.
- Three finishes
- High-quality molded plastic
- Water-saving dual-flush
- Can be placed anywhere within a 5.5 ft. radius of the tank
- Low actuation force less than 5 lbf
- Includes mounting hardware and pneumatic hose
MANUAL PNEUMATIC MODELS
Model No. | Compatibility | Finish | List Price (USD) |
---|---|---|---|
116.055.16.1 | Concealed installation, Sigma or Omega 2x6 in-wall systems | NEW! Matte black with gloss black accent | $280.00 |
116.055.DW.1 | NEW! Gloss black with matte black accent | $235.00 | |
116.055.KH.1 | Polished chrome with matte chrome accent | $235.00 | |
116.055.KJ.1 | Alpine white with polished chrome accent | $215.00 | |
116.056.16.1 | Concealed installation, Sigma 2x4 in-wall systems | NEW! Matte black with gloss black accent | $235.00 |
116.056.DW.1 | NEW! Gloss black with matte black accent | $280.00 | |
116.056.KH.1 | Polished chrome with matte chrome accent | $235.00 | |
116.056.KJ.1 | Alpine white with polished chrome accent | $215.00 | |
116.057.16.1 | Furniture installation, Sigma or Omega 2x6 in-wall systems | NEW! Matte black with gloss black accent | $280.00 |
116.057.DW.1 | NEW! Gloss black with matte black accent | $235.00 | |
116.057.KH.1 | Polished chrome with matte chrome accent | $235.00 | |
116.057.KJ.1 | Alpine white with polished chrome accent | $215.00 |
TYPE 10 IR BUTTON WITH TOUCHLESS OPERATION
![Geberit remote flush button Geberit remote flush button](/_assets/local-media/remotes/type10-ir-matte-black-hand-16-9.jpg)

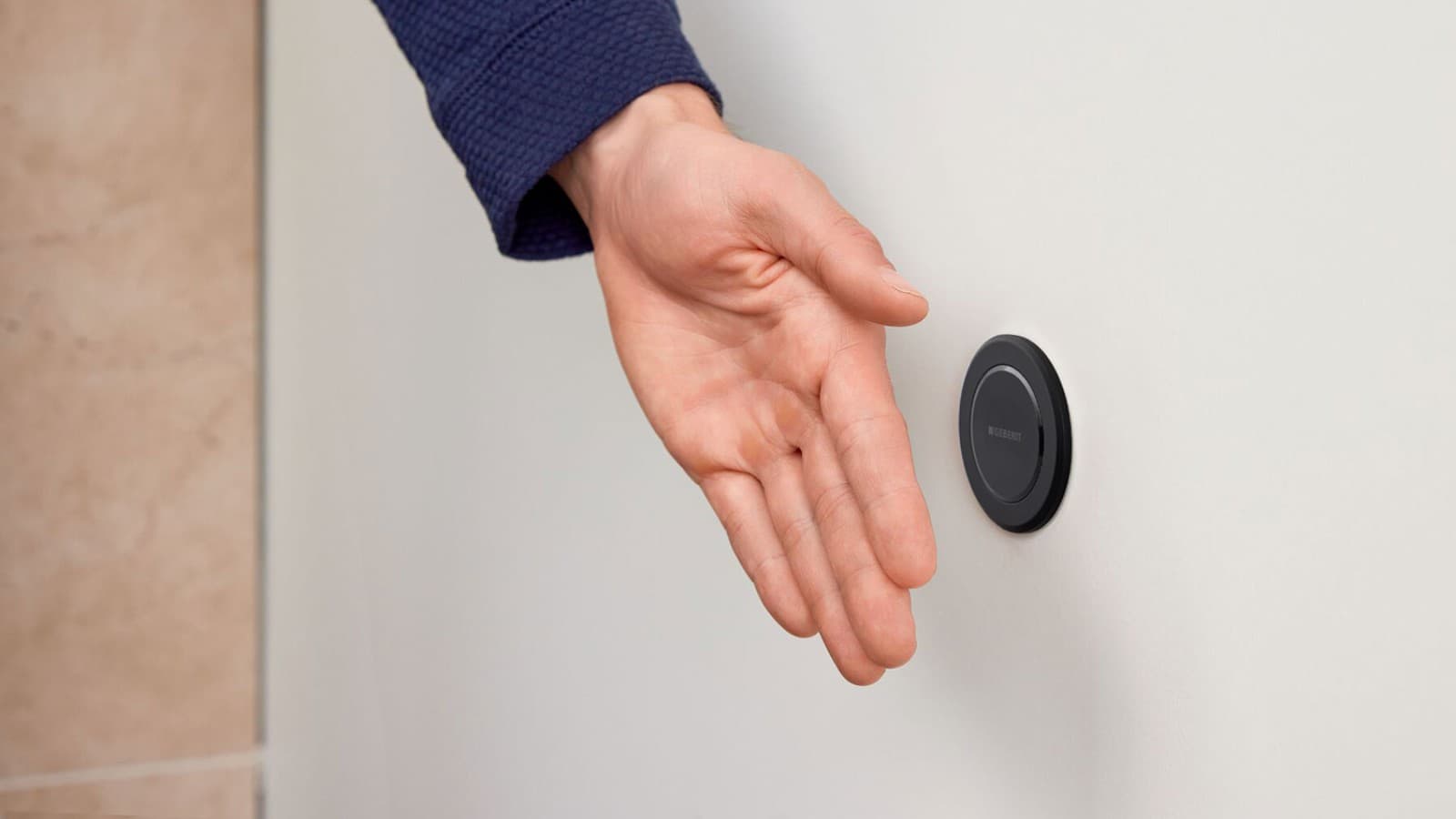

Geberit Type 10 IR hands-free, touchless activation helps prevent the spread of germs, perfect for private or semi-public bathrooms where users are looking for the ultimate in comfort, convenience, and hygiene. Type 10 IR touchless buttons are easy to use: wave a hand near the sensor. Continue to hold hand in front and benefit from built-in user initiated dual-flush operation. (See the User Manual (, 10 MB) for details). Pair with decorative single- or dual-flush actuator plate as a design accent or manual override in the case of power loss.
Now Geberit Type 10 IR hands-free flush buttons are easier to use than ever! Hard-wired and battery-operated Type 10 buttons come with built-in Bluetooth® communication. Need to adjust the settings or monitor operation on your Type 10? Simply download the Geberit Control app for any iOS or Android smartphone. Use the app to program your Type 10 button and retrieve usage data. Achieve total control from the palm of your hand!
- Brushed stainless steel or matte black finish
- Water-saving dual flush
- Hands-free, touchless flushing
- Hard-wired or battery operation
- Available version with manual flush override for public and semi-public applications
- NEW! Wireless remote programming, operation, and monitoring via Geberit Control smartphone app (Bluetooth-enabled iOS or Android smartphones) or via Geberit Service Handy (IR interface)
HANDS-FREE MODELS, AC POWER (HARD-WIRED)12V, GEBERIT CONTROL BLUETOOTH® ENABLED
Model No. | Finish | Compatability | List Price (USD) |
---|---|---|---|
115.936.SN.6 | Brushed stainless steel | Sigma12 (2x6) in-wall system | $1037.00 |
115.936.14.6 | NEW! Matte black | $1037.00 | |
115.956.SN.6 | Brushed stainless steel | Omega12 (2x6) in-wall system | $1217.00 |
115.956.14.6 | NEW! Matte black | $1217.00 | |
Combine with cover plates or Geberit single- or dual-flush actuator plates Sigma01 to Sigma60 OR Omega20 to Omega60 (sold separately). |
HANDS-FREE MODELS, DC POWER (BATTERY)3V, GEBERIT CONTROL BLUETOOTH® ENABLED
Model No. | Finish | Compatability | List Price (USD) |
---|---|---|---|
115.937.SN.6 | Brushed stainless steel | Sigma12 (2x6) in-wall system | $1072.00 |
115.937.14.6 | NEW! Matte black | $1072.00 | |
Combine with cover plates or Geberit single- or dual-flush actuator plates Sigma01 to Sigma60 (sold separately). |
Support Documents
Specification Sheet, Pneumatic Models (, 338 KB)
Specification Sheet, Hands-free Models (, 778 KB)
Installation Instructions, Pneumatic actuated 2x6 Models (, 7.2 MB)
Installation Instructions, Pneumatic actuated 2x4 Models (, 8.1 MB)
Installation Instructions, Pneumatic actuated Furniture Models (, 6.1 MB)
Installation Instructions, AC- or Battery-powered Hands-free Sigma12 (2x6) Models (, 9.5 MB)
Installation Instructions, AC-powered Hands-free Omega12 (2x6) Models (, 8.6 MB)
Maintenance Guide, Hands-free Models (, 15 MB)
User Manual, Hands-free Models (, 10 MB)
Repair Parts, Pneumatic Models (, 552 KB)
How do I clean my flush actuator surface? (, 2.5 MB)
